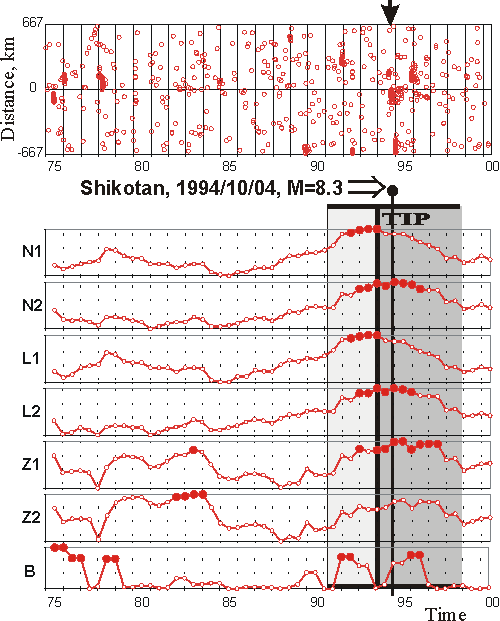

The upper part of the figure below, displays space-time distribution the
sequence of earthquakes from CI #77 (Table 1) with magnitude equal of above
Mmin(20). The distance along the belt is measured from the center of the circle
in projection onto seismic belt axis. The lower part shows the seven running
averages of the M8 algorithm in the same circle: The extreme values for these
functions marked with dots on the diagram concentrate in the interval from
January 1991 to January 1994 (light gray rectangle). This coincidence starts an
alarm for the next 5 years (gray rectangle). The occurrence of the 1994 Shikotan
earthquake (vertical line) falls into this period.
|
